Unox Cheftop-X™ Digital.ID™ - 10 Tray Combi Oven

Price on Application
ex-GST
SKU: CAR-Combi-Oven-XEDA-1011-EXRS
×
Loading...

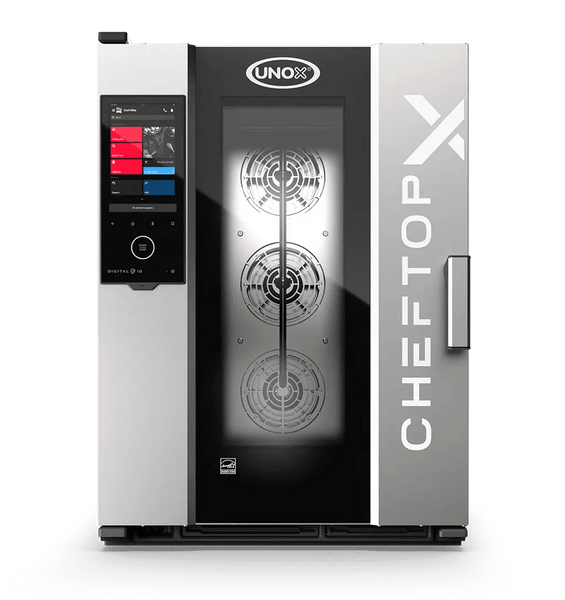

Unox Cheftop-X™ Digital.ID™ - 10 Tray Electric Combi Oven - XEDA-1011-EXRS

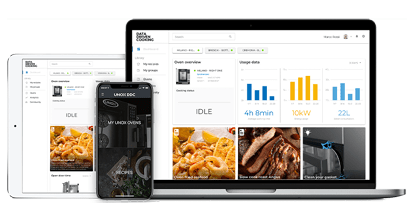

Professional high-performance combi oven equipped with a state of-the-art operating system and intelligent technology designed to perfectly handle any gastronomy, pastry and bakery cooking process. It is ENERGY STAR® certified for low-consumption performance and waste reduction, also thanks to its automatic washing system with recirculation. CHEFTOP-X™ has a cooking chamber moulded in 316L steel and an integrated RO.Care water filtering system that eliminates the need of external treatments. It is equipped with an integrated microphone to enable voice control and interaction with UNOX’s Corporate Chefs to receive cooking assistance directly through the interactive panel. The Digital.ID™ advanced operating system allows to save the entirety of one’s favourite settings on the account and to transfer them from an oven to another in a few seconds. With the Digital.ID™ app, it is possible to control the oven through smartphones as well as customise accounts

Key Features:

  • Sturdy stainless steel external structure for maximum thermal
    insulation
  • All-stainless-steel slam shut door
  • Integrated ultra-bright 16’’ capacitive control panel
  • Cooking chamber in AISI 316L stainless steel for maximum
    corrosion resistance
  • Motors with reversing multi-fan system and symmetrical linear
    heating elements with high power density
  • Compacted covering with welded stainless steel tube lattice
    frame
  • Double LED bar with warm and cold tone adjustment
    integrated in the door
  • PRESSURE.Klean: automatic washing system with recirculation
  • Integrated DET&RINSE™ ULTRA detergent container
  • RO.Care: integrated resin filter system that neutralizes the
    formation scale. It filters up to 1300 L of water with one
    cartridge and is equipped with a filter exhaustion sensor
  • Digital.ID™ Operating System
  • Built-in microphone enabling call and voice control functions
  • Built-in Wi-Fi internet connection
  • HACCP Data Download
  • Built-in hand shower
  • Triple glazing to minimise heat loss and maximise energy
    efficiency
  • C-shaped perforated tray supports with anti-overturn system
  • Drip tray connected to the drain and integrated into the door.
    Functioning also when the door is open
  • Motor speed adjustable between 900 rpm and 3600 rpm
  • MULTI.Point core probe with 4 measuring points
Dimensions:
  • W: 750mm D: 841mm H: 1069mm
  • Net Weight: 132kg
  • Tray pitch: 67mm

Power:

Standard

  • Voltage: 380-415 V
  • Phase: ~3PH+N+PE
  • Frequency: 50 / 60 Hz
  • Total Power: 19.6 kW
  • Max Amp draw: 30A
  • Required Breaker Size: 32A
  • Energy efficiency: 37.0kWh/day - 0 kg CO2/day**

**See specification sheet for more information

Model: XEDA-1011-EXRS

Download Spec Sheet here

Optional:

Stainless Steel Stand - a convenient purpose-built stand for optimal working height  (available soon)
